5083 Aluminum Cast Tool and Jig Plate
2018-04-25 14:10
Chalco 5083 aluminum cast tool and Jig plate, stictly control the aluminum impurity, alkali metal elements and low melting point elements, so that improve corrosion resistance and creep resistance, milling and grinding plate on both sides of the flat surface fine presentation, dimensional tolerance standard global leader, factory inspection, double-sided film protection, strength more than similar European products.

Chalco 5083 aluminum cast tool and Jig plate is one-third as heavy as steel plate, which usually eliminates the need for heavy handling equipment for installation or set up, and reduces the load on ways and screws. It is highly resistant to corrosion, requiring no protective treatment. After the tool is obsolete, Tool & Jig plate has a higher salvage value than steels. Cast Aluminum Tool & Jig Plate is used where strength is not a requirement, but minimal machining distortion along with flatness is required. This material is non-heat treatable. Cast Aluminum Tool & Jig Plate has electrical conductivity of 36% of copper.

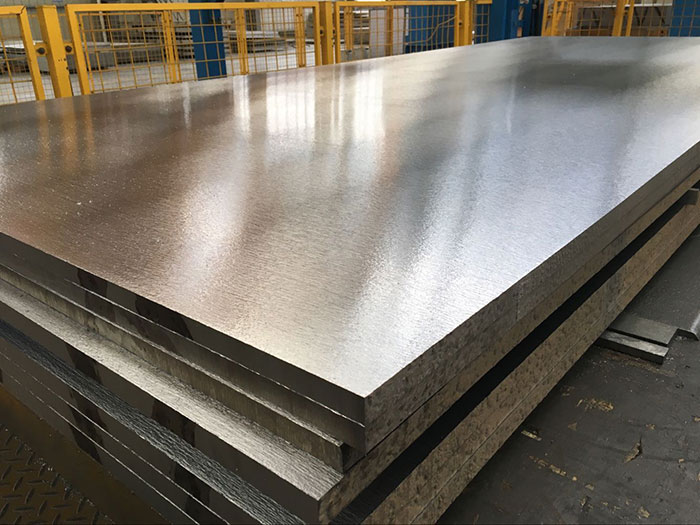

aluminum cast tool and jig plate

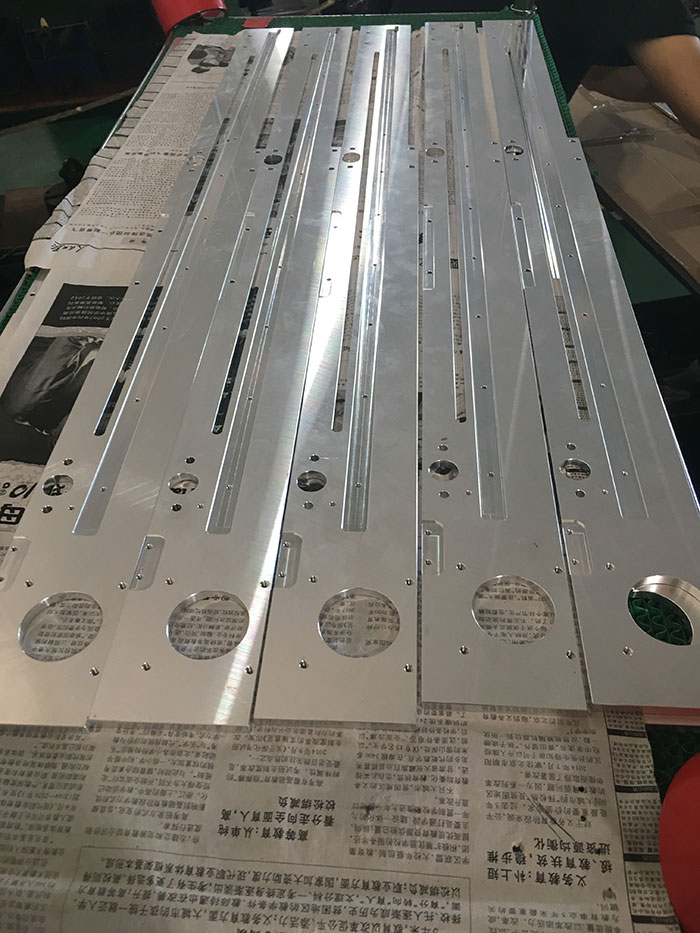

aluminum cast tool and jig plate

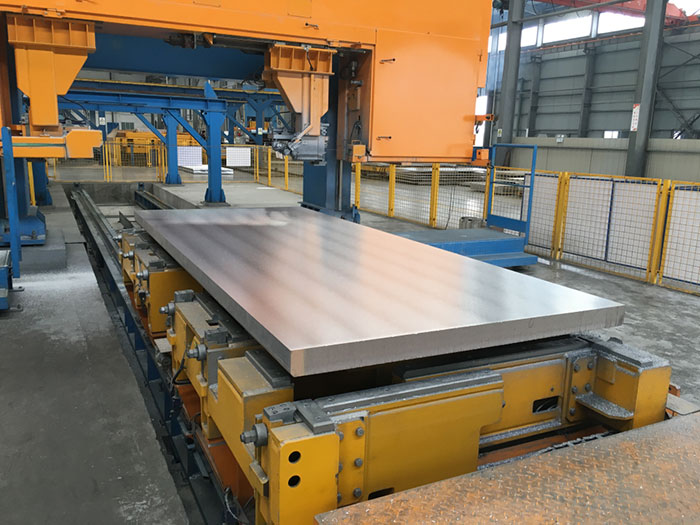

aluminum cast tool and jig plate

Characteristics of Chalco 5083 aluminum cast tool and Jig plate:

1. Stringent flatness tolerance and dimensional control
2. Very tight thickness and flatness tolerance compared to the rolled plate alloys.
3. Excellent welding ability, anodizing quality, superior corrosion resistance.
4. Vacuum and pressure integrity guaranteed


Specification of Chalco 5083 aluminum cast tool and Jig plat
Alloy Composition:
Alloy:  EN573-3/3.3547   5083
Material features: Casting, homogeneity

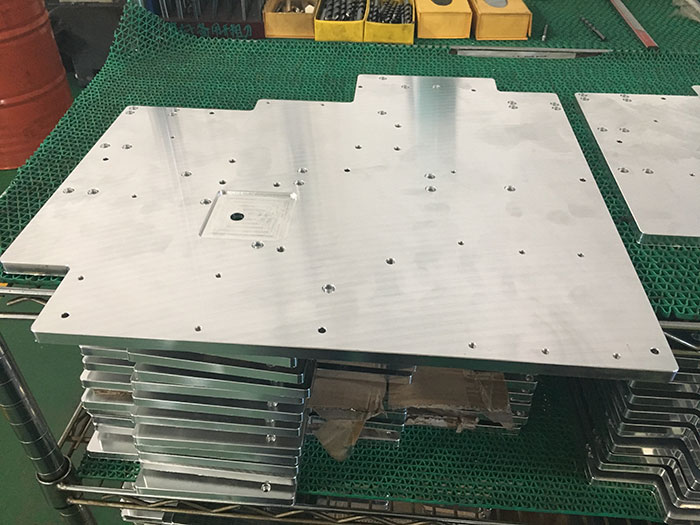

aluminum jig plate

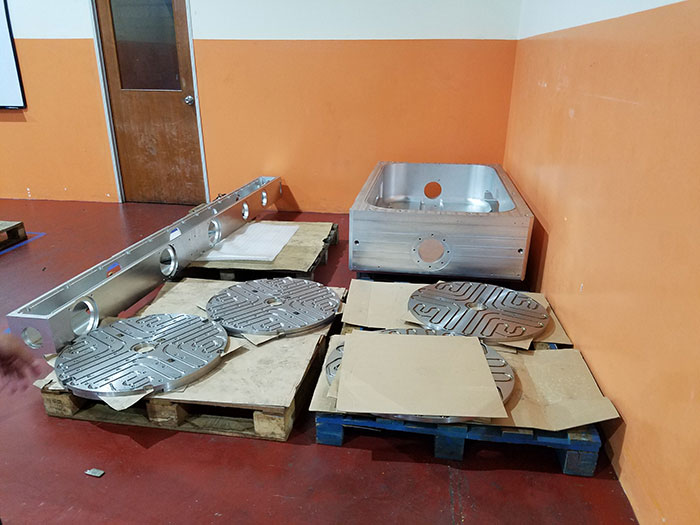

aluminum jig plate

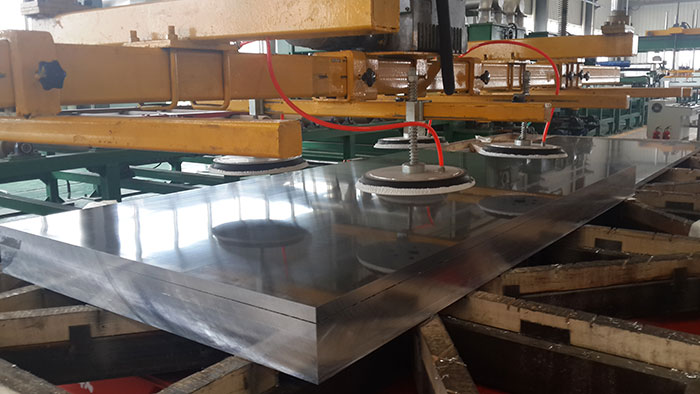

aluminum jig plate

Material Properties:
Machinability:  very good
Weldability:    Very good
Anodic oxidation properties: Good, not decorative
Polishability:     Very good
Corrosion resistance: Very good
WEDN machining: good

Typical Mechnical Properties:
Tensile strength Rm: 240—290 Mpa
0.2% Yield strength Rp0.2:  110—130 Mpa
Breaking elongation A5%:  12
Brinell hardness HBW:     70

Typical Physical Properties:

Density:  2.66g/cm3
Thermal conductivity:   110—140W/(Mk)
Electrical conductivity:   16—19MS/m(m/Ωmm2)
Elastic modulus:       ˜70,000N/mm2
Coefficient of thermal expansion:  24.2* 10—6/K

Thickness ranges and sizes:

Plate thickness between  5mm---100mm
Standard sizes are:
Thickness     ×    Max. Width     ×  Max. Length
>=5mm       ×   1520mm         ×  3020mm
>=10mm       ×   1570mm         ×  3670mm
>=15mm       ×   1860mm         ×  4000mm
Other dimension available on request

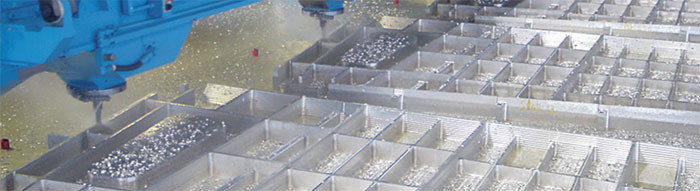

aluminum jig plate

aluminum cast tool and jig plate

Tolerance:

Surace:   Precision milled
Surface roughness Ra  <=0.4um
Thickness tolerance: +/-0.05mm
Flatness:     6---12mm   thickness<=0.30mm
            >12—100mm  thickness<=0.12mm
Tolerance in width: -0+10mm
Tolerance in length: -0+15mm

Application of Chalco 5083 aluminum cast mold plate:

Chalco 5083 aluminum cast tool and Jig plate is used for assembly jigs and fixtures, welding fixtures, hydro press form blocks, drill jigs, templates, vacuum chucks, index tables, printing machinery components, automotive tooling, aircraft components, electronic components, vacuum chambers, rubber and plastic molds, prototypes, medical instrumentation, foundry patterns, food machinery components, packing machinery, CNC routing tables, circuit printers, etc. Used in aluminum non-strength applications where stability and flatness is required.
