Chalco 5083 high precision aluminum cast plate has finer and homogeneous grain structure, with special state of stress digestion. Which makes almost no deformation after high speed of machining and cutting. Aluminum rolled plate sheet has orientated structure with strip distribution of grain along the processing direction, which makes more or less deformation of the parts after machining.
Characteristics of Chalco 5083 high precision aluminum cast plate

1.    Homogenised and stress relieved

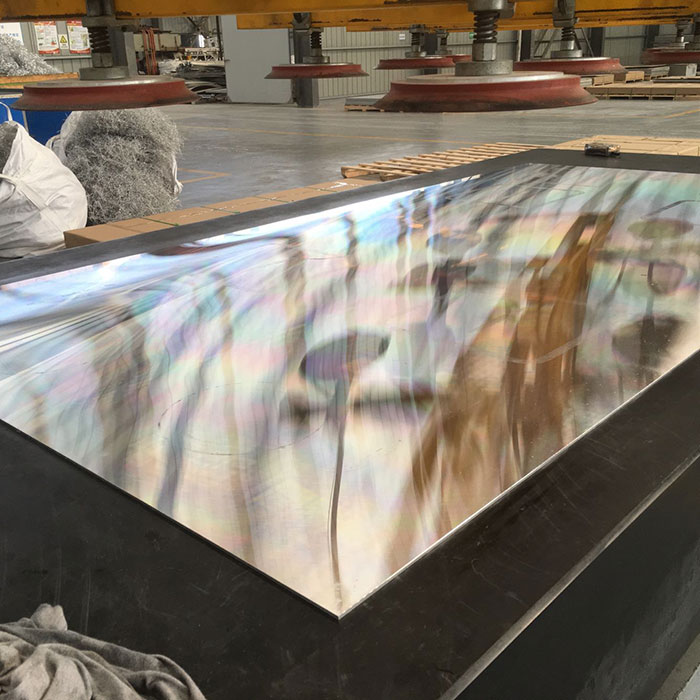

2.    Precision milled, roughness Ra0.4um, foiled on both sides
3.    High strength, good corrosion resistance and oxidation resistance.
4.    Isotropic homogeneity, higher dimension stability.
5.    Anti-magnetic, anti-radiation.
6.    Fine surface miling as requirement. Good surface quality, the finished product can be double side filmed.
Specification of Chalco 5083 high precision aluminum cast plate

Alloy Compsition:
Alloy:  EN573-3/3.3547   5083
Material features: Casting, homogeneity

Material Properties:
Machinability:  very good
Weldability:    Very good
Anodic oxidation properties: Good, not decorative
Polishability:     Very good
Corrosion resistance: Very good
WEDN machining: good

Typical Mechnical Properties:
Tensile strength Rm: 240—290 Mpa
0.2% Yield strength Rp0.2:  110—130 Mpa
Breaking elongation A5%:  12
Brinell hardness HBW:     70
Typical Physical Properties:

Density:  2.66g/cm3
Thermal conductivity:   110—140W/(Mk)
Electrical conductivity:   16—19MS/m(m/Ωmm2)
Elastic modulus:       ˜70,000N/mm2
Coefficient of thermal expansion:  24.2* 10—6/K

Thickness ranges and sizes:

Plate thickness between  5mm---100mm
Standard sizes are:
Thickness     ×    Max. Width     ×  Max. Length
>=5mm       ×   1520mm         ×  3020mm
>=10mm       ×   1570mm         ×  3670mm
>=15mm       ×   1860mm         ×  4000mm
Other dimension available on request
Tolerance:

Surace:   Precision milled

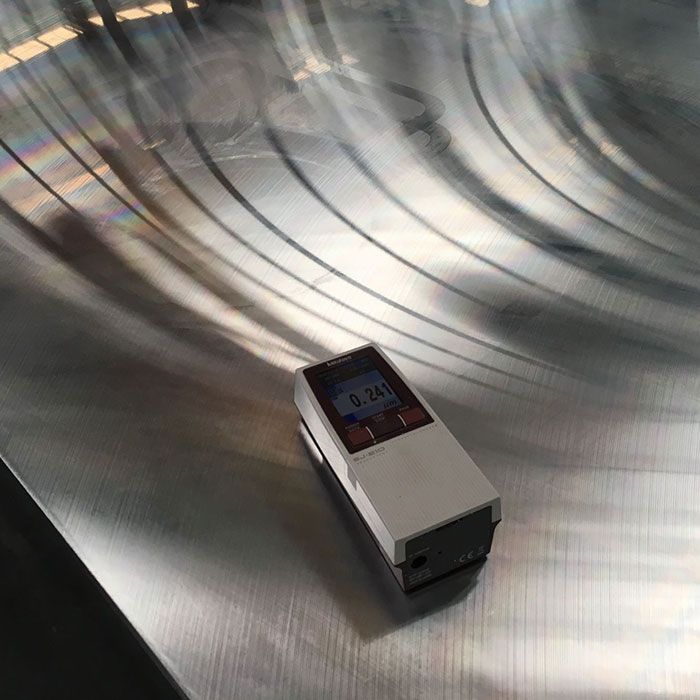

Surface roughness Ra  <=0.4um
Thickness tolerance: +/-0.05mm
Flatness:     6---12mm   thickness<=0.30mm
            >12—100mm  thickness<=0.12mm
Tolerance in width: -0+10mm
Tolerance in length: -0+15mm

Application of Chalco 5083 high precision aluminum cast plate:

Food machinery components
Automotive and Aerospace fixtures
Electronic and medical instrumentation and test equipment
Plastic injection blow molds and proto type molds
Complex machined components
Machine equipment manufacturers
Thermo forming tools
Printing machinery components
