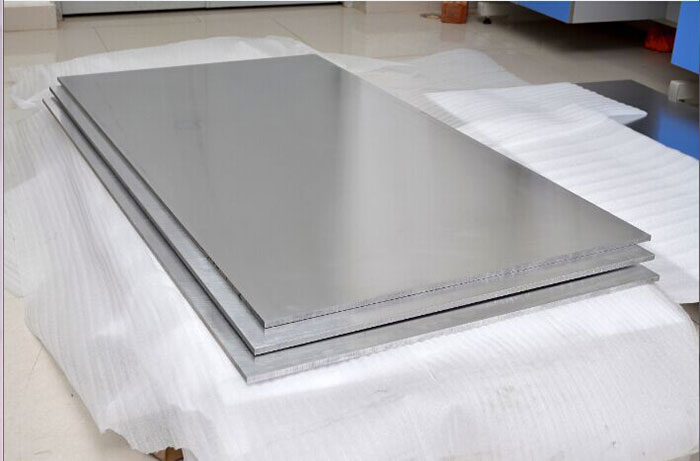

Chalco 5083 precision machined rolled aluminum plate is used almost universally in almost all areas of the capital goods industry, because of its many beneficial properties..
Characteristics of Chalco 5083 precision machined rolled aluminum plate:

1. Good anodizing capability
2. Very good corrosion resistance
3. Very good weldability
4. Good machinability

Specification of Chalco 5083 precision machined rolled aluminum plate

Alloy Compsition:
Alloy:  EN573-3/3.3547   5083
Material features: H111, H112
Material Properties:
Machinability:  very good
Weldability:    Very good
Anodic oxidation properties: Good, not decorative
Polishability:     Very good
Corrosion resistance: Very good
WEDN machining: good

Typical Mechnical Properties:
Tensile strength Rm: 240—290 Mpa
0.2% Yield strength Rp0.2:  110—130 Mpa
Breaking elongation A5%:  12
Brinell hardness HBW:     70

Typical Physical Properties:

Density:  2.66g/cm3
Thermal conductivity:   110—140W/(Mk)
Electrical conductivity:   16—19MS/m(m/Ωmm2)
Elastic modulus:       ˜70,000N/mm2
Coefficient of thermal expansion:  24.2* 10—6/K

Thickness ranges and sizes:

Plate thickness between  5mm---100mm
Standard sizes are:
Thickness     ×    Max. Width     ×  Max. Length
>=5mm       ×   1520mm         ×  3020mm
>=10mm       ×   1570mm         ×  3670mm
>=15mm       ×   1860mm         ×  4000mm
Other dimension available on request
Tolerance:

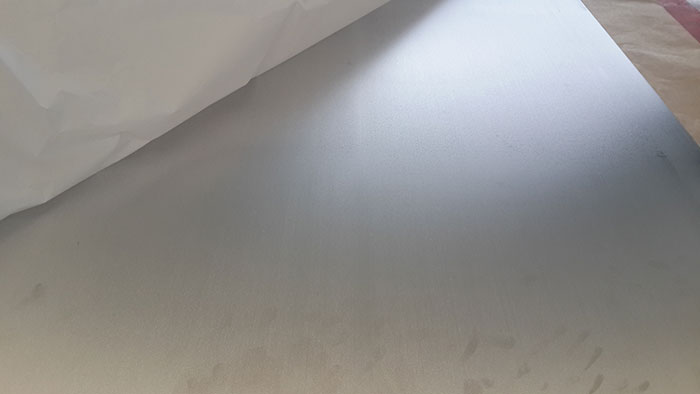

Surace:   Precision milled
Surface roughness Ra  <=0.4um
Thickness tolerance: +/-0.05mm
Flatness:     6---12mm   thickness<=0.30mm
            >12—100mm  thickness<=0.12mm
Tolerance in width: -0+10mm
Tolerance in length: -0+15mm

Application of Chalco 5083 precision machined rolled aluminum plate:

Electronics, in many cases, components are no only technically anodized in electronics, they must also meet optical requirements. 5083 precision machined rolled aluminum plate can meet many of these standards.

Mechanical engineering, for low to medium-loaded base and support plates,5083 precision machined rolled aluminum plate are frequently used.

Device construction, the good weldability of 5083 means that, this materials can be used in a variety of welded structures.

Food industry, 5083 precision machined rolled aluminum plates are safe in contract with food in accordance with EN602:2004, for this reason, this materials is used in a variety of application in industrial plants of the food industry.
