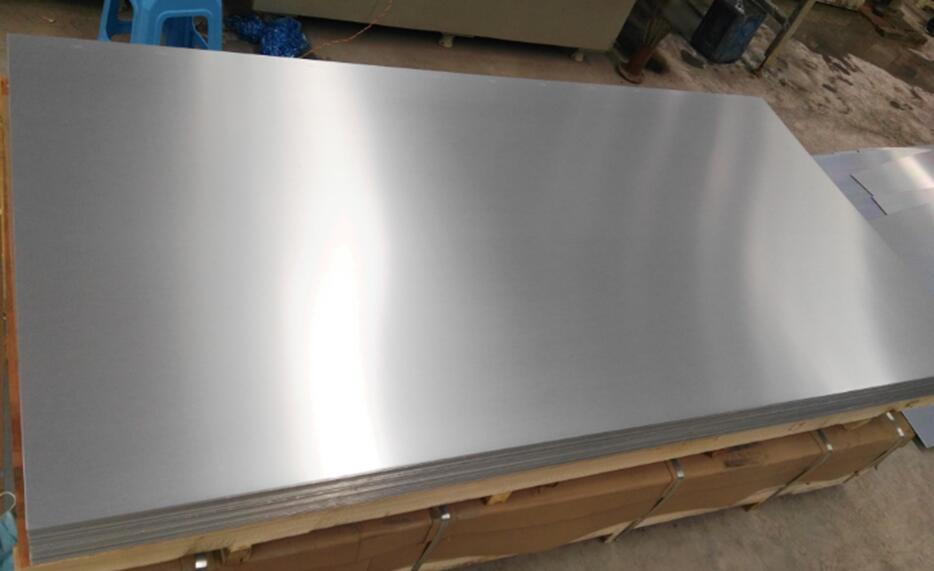

Metric cast aluminum plate stands for dimensionally stable, extremely distortion low and homogenous aluminum plates of highest quality. Chalco Metric cast aluminum plate are used in a wide range of applications. Not only the machine building industry trusts in the quality of our aluminum plates, but also the optical industry as well as the mould making sector and many other industries.



The Metric cast aluminum plate has fine and uniform grain structure and special stress resolution state, and it has little deformation after cutting.
Thickness ranges and sizes of Metric cast aluminum plate:
Plate thickness between  5mm---100mm
Other dimension available on request
Tolerance of Metric cast aluminum plate:
Surface: Precision milled
Surface roughness Ra  <=0.4um
Thickness tolerance: +/-0.05mm
Flatness:     6---12mm   thickness<=0.30mm
            >12-100mm  thickness<=0.12mm
Tolerance in width: -0+10mm
Tolerance in length: -0+15mm
