Product introduction of

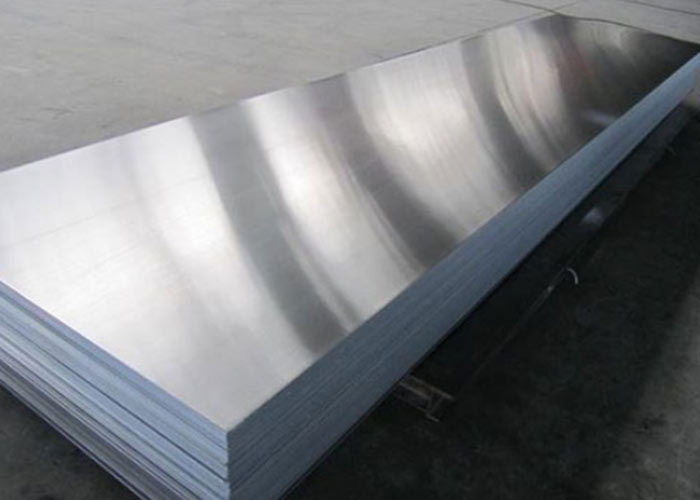

5086 high precision super flat aluminum sheet .
1. The surface is polished with more than 400 mesh, without milling surface, and can be directly anodized.
2.The thickness tolerance can reach 0.05mm, flatness 0.1mm/m2.
3.Adopt special technology to eliminate stress, can completely replace the imported aluminum plate.
5086 high precision super flat aluminum sheet
2: Accuracy of
5086 high precision super flat aluminum sheet
|
Grade |
Thickness range |
Thickness tolerance |
Flatness |
A+
|
3mm-12mm |
±0.05mm |
0.1mm/m2 |
|
15mm-20mm |
±0.05mm |
0.1mm/m2 |
|
25mm-40mm |
±0.1mm |
0.1mm/m2 |
|
A |
3mm-12mm |
±0.1mm |
0.1mm/m2 |
|
15mm-20mm |
±0.1mm |
0.2mm/m2 |
|
25mm-40mm |
-0.1-0.2mm |
0.2mm/m2 |
General specification of
5086 high precision super flat aluminum sheet:
|
Thickness |
Width x Length(mm) |
|
3mm-20mm |
2000-2500x5000-6200 |
|
25mm-30mm |
1525x5000 |
5086 high precision super flat aluminum sheet use ：
Accessories of electronic and electrical products, medical equipment, optical instruments, high precision tooling, jigs, vehicles, etc.
