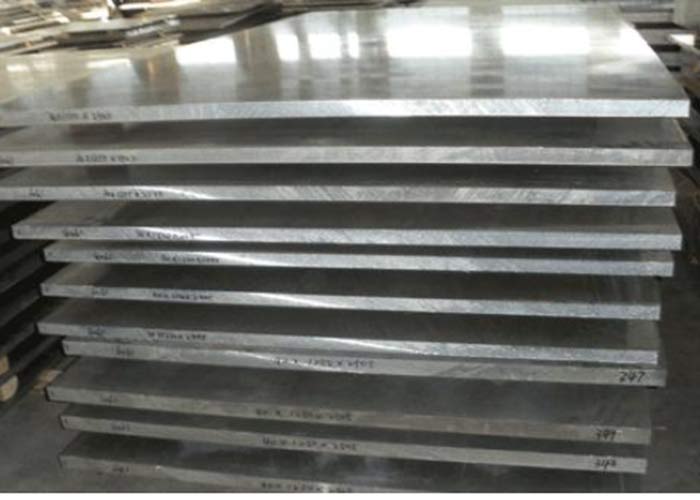

Product introduction of 5052 high precision super flat aluminum sheet . 1. The surface is polished with more than 400 mesh, without milling surface, and can be directly anodized.
2.The thickness tolerance can reach 0.05mm, flatness 0.1mm/m2.
3.Adopt special technology to eliminate stress, can completely replace the imported aluminum plate.
2:  Accuracy of 5052 high precision super flat aluminum sheet


Grade	Thickness range	Thickness tolerance	Flatness
A+	3mm-12mm	±0.05mm	0.1mm/m2
	15mm-20mm	±0.05mm	0.1mm/m2
	25mm-40mm	±0.1mm	0.1mm/m2
A	3mm-12mm	±0.1mm	0.1mm/m2
	15mm-20mm	±0.1mm	0.2mm/m2
	25mm-40mm	-0.1-0.2mm	0.2mm/m2


General specification of 5052 high precision super flat aluminum sheet:

Thickness	Width x Length(mm)
3mm-20mm	2000-2500x5000-6200
25mm-30mm	1525x5000



5052 high precision super flat aluminum sheet use ：
Accessories of electronic and electrical products, medical equipment, optical instruments, high precision tooling, jigs, vehicles, etc.
